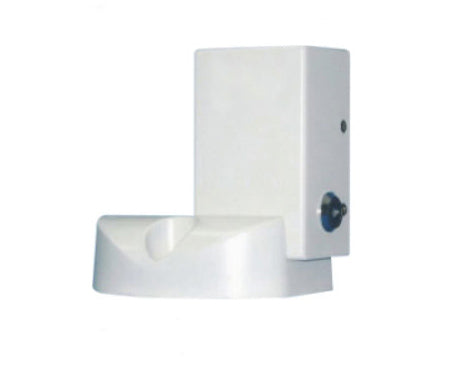

Swing Gate Electric Bolt Lock

Features:

1. Rated voltage 24V DC

2. Material aluminum die-cast alloy (lock)

3. Surface powder coating

4. Manually operated key cam lock for manual operation failure in power

Technical parameters:

Rated Voltage: DC 24V

Materials: Aluminum Die Cast Alloy (Lock)

Cast-iron/ Aluminum Die Casting (Lock Stopper)

Surface: Powder Coating

Manual Override: Key Operated Cam Lock to enable manual operating

during power failure

Dimension: 135*190*75 (mm)

Usage: Swing Gate

Bolt Pin Diameter: 16 mm

Working Range: 15 mm

Pulse to Open Lock: 3 sec

Operating Current: 2.5A
